Color bands are an efficient and cost-effective method for indicating the value of an electronic component. Printed alphanumeric codes would be too small to read on the smallest resistors, which led to the development of the color code in the early 1920s.
The initial question that often comes up is: how do I determine from which end to start reading my 10k Resistor Color Code?
Thankfully, there are a few visual clues available!
In a usual case, the bands are not spaced regularly—there’s a gap, and bands are somehow grouped. The larger gap appears before the tolerance band. Position the bigger group on the left side and read resistors from left to right.
Often, the tolerance of the resistor is either 5% or 10%. These values are indicated with metallic colors—gold and silver, respectively. However, the10k Resistor Color Code never begins with such a color. So if you find the metallic color on your resistor, it’s definitely the tolerance value and must be placed on the right side. Again, read the resistor from left to right.
Typically, the first band will be closest to the end (though not always, so use other clues when necessary).
If none of the above seem to solve your problem, you can always use a multimeter to differentiate between two possible resistances—and reading directions.
OK, let’s get down to brass tacks: How to 10k10k Resistor Color Code ?

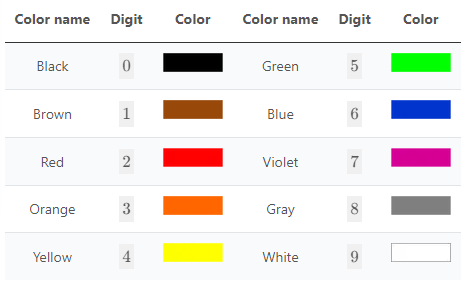

The value of the resistance is indicated by colors. Every color represents a different number:
It’s the 10k Resistor Color Code that applies to the first 2 or 3 bands from the left side.

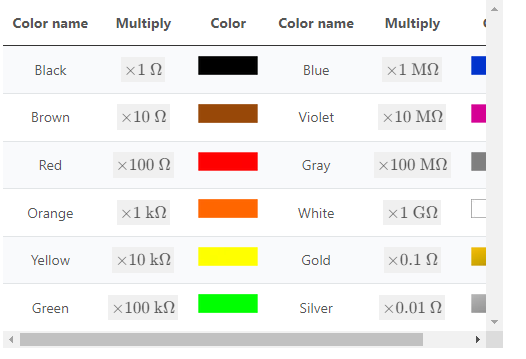

Next, we have a band called the multiplier, where the color’s meaning differs:
Applications of 10k Resistor
The 10k resistor has numerous significant applications in electronics, frequently used in breadboards and various prototyping setups. Some popular uses are listed below:
Voltage Divider Circuits
Voltage divider circuits are essential in electronics, converting high voltage into more manageable levels. The 10k resistor is well-suited for these circuits. It helps prevent high-power voltage or current from disrupting circuit operations, ensuring optimal device performance. Its small and compact design makes it ideal for use in circuit protection devices.
Breadboards and Perf Boards
Breadboards, or plug blocks, are valuable for setting up temporary circuits. Perfboards, or strip boards, are crucial for electronic prototyping. Both boards provide a foundation for various PCBs. The 10k ohm resistor’s slim profile allows it to integrate seamlessly into these boards. It fits securely into a breadboard with minimal movement, making it a hassle-free choice for your next project.
Current Limiters
Certain circuit components require controlled current flow for proper operation. Resistors play a crucial role in these scenarios, and 10k ohm resistors excel as current limiters. When you need to restrict current flow in a circuit, this resistor is essential. It effectively limits the current, allowing only the desired voltage to pass through, ensuring optimal circuit performance.
Setting Bias and Operating Points
Biasing is a foundational concept in electronics, especially in amplifier circuits and transistor applications. A 10k resistor often helps establish the operating point of transistors or other active components. By providing these components with a defined bias voltage or current, it ensures they operate within their linear or desired regions, which is crucial for proper amplification and signal processing.
Filtering and Time Constants
In RC (resistor-capacitor) circuits, 10k resistors are essential for defining time constants and shaping the frequency response of the circuit. By carefully selecting resistor values, you can control the cutoff frequencies of filters and influence how quickly a circuit responds to input changes. These time constants are vital in applications such as audio filtering, signal smoothing, and time delay circuits.
Compatibility and Component Availability
The selection of a 10k resistor or other resistor values may depend on the availability of components and their compatibility. Designers often choose standard resistor values that are readily available from suppliers or easily accessible in their region. This ensures that the necessary resistors can be sourced without delays or availability issues.
Power Dissipation
The flow of current through resistors generates heat. Excessive heat can cause resistors to overheat and potentially fail if they operate beyond their designated power ratings. Therefore, when choosing a 10k resistor, or any resistor, it is crucial to consider its power rating. This specification, typically expressed in watts, should not be exceeded to prevent damage and ensure reliable operation.
These various applications highlight the versatility of 10k resistors in electronics, making them essential tools for regulating currents, defining reference voltages, and ensuring the proper operation of a wide range of electronic devices and circuits.
Temperature Sensors
Temperature sensors, often paired with 10k resistors, are vital for achieving precise temperature control in devices such as thermostats and ovens. They work by generating temperature-dependent voltage signals within voltage divider networks, enabling accurate regulation. An added benefit of these sensors is their ability to offset component drift, ensuring consistent circuit performance. In battery management, they monitor temperature to facilitate controlled charging, extending battery life and enhancing safety. In industrial processes, temperature sensors combined with 10k resistors ensure accuracy in systems such as ovens, furnaces, and chemical processes, thereby optimizing production. Overall, they provide precision, reliability, and safety across a wide array of electronic applications.
Digital Logic
In digital circuits, 10k resistors are versatile components that play crucial roles in ensuring stable and reliable operations. They are often used as pull-up and pull-down resistors, effectively safeguarding against undefined states in input pins and enhancing circuit stability. These resistors are also important in communication protocols like I2C and SMBus, where they facilitate bidirectional data exchange by serving as pull-up resistors. Additionally, 10k resistors simplify the design of systems with buttons and switches, ensuring predictable logic levels. They also help protect microcontroller inputs by guarding against voltage spikes and noise in sensitive digital systems.
In essence, the versatility and precision of the 10k resistor make it an indispensable component in electronics. Whether working on a simple LED project, a complex analog circuit, or a digital microcontroller application, the 10k resistor ensures precise control over currents and voltages, enhancing the reliability and efficiency of electronic devices and systems.
Feedback Networks
Feedback networks, prevalent across diverse fields, facilitate dynamic control and adaptation. In electronics, they refine amplifier circuits by enhancing linearity and reducing distortion. In control systems, they maintain desired conditions. In biology, feedback networks regulate processes like temperature control, maintaining homeostasis. In economics, they adjust pricing and supply in response to demand. These networks create self-regulating systems that improve efficiency and reliability in changing conditions. Understanding and utilizing feedback networks drive innovation and progress across various domains, underpinning stability and optimizing operations. Whether it involves a 10 kilo ohm10k Resistor Color Code in electronics or minor resistor adjustments in economics, feedback networks are essential for maintaining equilibrium and achieving desired outcomes.
