Without boarding a completely functional aircraft, picture yourself soaring through the skies and enjoying the rush of flight from a raspberry’s eye perspective. This is how gyroplane magic works!

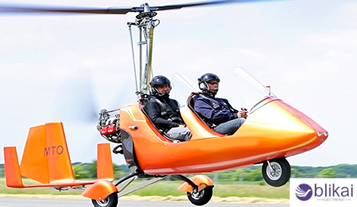

What is Gyrocopter?
A gyrocopter, occasionally appertained to as an autogyro or gyroplane, is a kind of helicopter that produces thrust with a separate motor- driven propeller and lift with an undriven propeller. Gyrocopters employ the propeller to produce forward stir and the rotor to produce lift by autorotation, in discrepancy to helicopters, which use the main rotor for both lift and thrust.

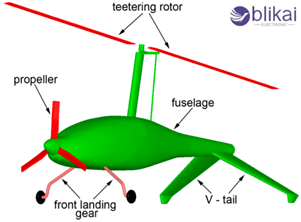

Key components of Gyrocopter
- Rotor System:
Main Rotor Blades: These are the large blades that generate lift. They spin freely and are not powered by the engine directly but by the air moving through them.
Rotor Hub: The core of the rotor system, to which the rotating blades are joined.
Can be found at the front, back, or sides of the helicopter and supplies the power needed to turn the propeller.
- Propeller:
Usually found at the gyrocopter’s front, it gives forward propulsion. It is driven by the engine.
- Fuselage:
The primary structure of a helicopter, containing the controls, cockpit, and other critical systems.
- Tail Assembly:
Includes the tail rotor or vertical stabilizer to help with directional stability and control.
- Landing Gear:
Usually consists of wheels, skids, or floats depending on the intended operation area (land or water).
- Cockpit:
The area where the pilot sits and controls the gyrocopter. It contains flight instruments, control sticks, and other necessary controls.
- Control System:
Includes the cyclic stick, collective pitch control, and rudder pedals that allow the pilot to control the direction and stability of the gyrocopter.
- Instrumentation and Avionics:
Includes various instruments for monitoring flight parameters, navigation, and communication systems.
- Fuel System:
Composes the gasoline pump, fuel lines, and tank that provide fuel to the engine.
Comparison to helicopters and fixed-wing aircraft
Flight Mechanics
– Helicopters: To provide lift, they make use of rotors, or rotating blades. They are able to take off, land, and hover vertically because to this. Because of their excellent maneuverability, they are perfect for tasks requiring exact positioning.
– Fixed-Wing Aircraft: These rely on forward motion to generate lift via stationary wings. They cannot hover and require a runway for takeoff and landing. Their flight is generally more stable and efficient at high speeds.
Performance and Efficiency
– Helicopters: More energy-intensive than fixed-wing aircraft because of the rotor blade rotation process. They are more suited for close quarters missions and short-range flights.
– Fixed-Wing Aircraft: Longer distances are typically more economical. They are frequently utilized for long-range flights, military missions, and commercial transportation because of their rapid coverage of wide areas.
Operational Flexibility
– Helicopters: Excellent for operations like air ambulance, rescue, and surveillance that call for vertical takeoff and landing. Where airplanes cannot operate, they can.
– Fixed-Wing Aircraft: Better suited for long-range and fast flights. They are utilized for military, freight, and commercial aircraft and call for larger runways.
Cost and Maintenance
– Helicopters: Generally more expensive to purchase and maintain due to the complexity of their rotor systems. Their maintenance costs can be high, partly because of the stress on components from hovering and vertical flight.
– Fixed-Wing Aircraft: Often less expensive to maintain per hour of flight. Their design is simpler in terms of flight mechanics, leading to potentially lower maintenance costs.
Safety
– Helicopters: Despite their extreme flexibility, they can be more challenging to manage, particularly in inclement weather, and are more prone to mechanical issues with the rotor system.
– Fixed-Wing Aircraft: Generally considered to have a higher safety record for long-distance travel, thanks to their more stable flight dynamics and the established infrastructure for air traffic control and maintenance.
Principles of Gyrocopter Stability
Gyrocopter stability depends on several key principles: the auto-rotating main rotor blades must maintain consistent lift, the center of gravity should be correctly positioned relative to the rotor, and gyroscopic precession must be managed. Additionally, yaw control via the rudder or tail rotor, proper roll and pitch stability through design features like dihedral angles, and balanced aerodynamic design and weight distribution all contribute to stable and controlled flight.
Achieve Stability in Flight
Gyroscopic Effect:
A gyrocopter’s primary rotor spins quickly, producing a gyroscopic effect that aids in aircraft stabilization. This effect resists changes in the rotor’s orientation, contributing to overall stability.
Auto-Rotation:
Gyrocopters work on the basis of autorotation, in contrast to helicopters. The airflow that passes through the rotor blades as the aircraft travels ahead drives them rather than the engine directly. This indicates that aerodynamic forces continuously drive the rotor, giving it stability and control.
Staggered Rotor Blades:
A steady flight path and a consistent angle of attack for the rotor are maintained by the staggered rotor blades with a small forward pitch.
Yaw Control:
Gyrocopters manage yaw with rudders and a vertical stabiliser (tailplane). The rudder enables the pilot to fine-tune the direction of flight, while the tailplane aids in maintaining directional stability.
Centrifugal Force:
Centrifugal force, which is produced as rotor blades rotate, aids in maintaining the proper rotor blade position and angle with respect to the airflow. This enhances the aircraft’s overall stability.
Pitch Control:
With either the control stick or the cyclic controls, the pilot can change the pitch of the rotor blades. With this modification, the pilot may regulate the aircraft’s pitch and keep a steady flight attitude.
All in all, these elements work together to guarantee that the gyrocopter maintains stability while in flight and reacts to the pilot and outside influences in an efficient manner.
